New---EOTech EOLAD2 and Aimpoint M$ quick release mount--pix

SMGLee · 10-01-2008, 02:02 PM

EOTech with Laser Device laser build into one unit. IR and visible laser share the same battery as the EOTech 552 in order to minimize the package and also to cut down on weight.

The visible Laser is a 5mW unit with range for visible in low out to 450m in low light and about 30m in day light

The IR laser is a -25mW to -100mW unit with reach out to 2000m in high out put and 600m in low setting.

Added a recoil lug to the cross bar screw for better security on the rail.

Control are in the rear with individual windage and elev adjustments. power source are contolled via the remote switch leading from the bottom of the unit ot the side button build into the unit. a double click on either the remote switch or the side button will set the beam on continous mode..

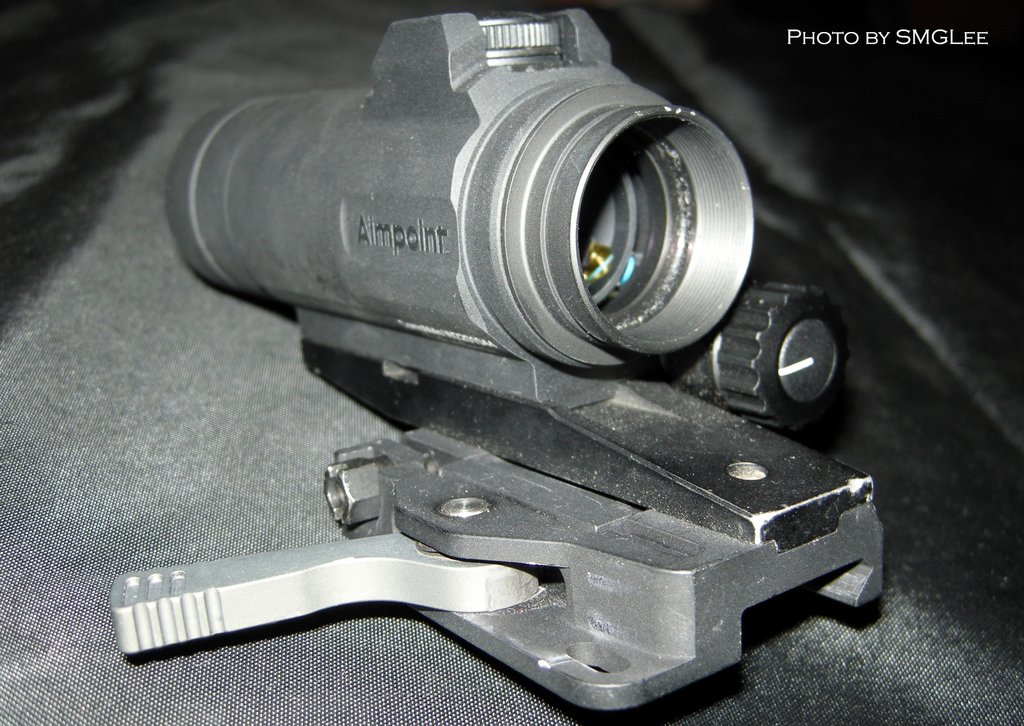

Aimpoint M4 with the prototype quick release mount.

Floating locking tab for a better contact with the rail.

Large lever to give good leverage and also an adjustment nut for rail variation in deminsion.

A locking tab on the bottom of the lever proventing the lever from accidential release.

Createdeemcee · 10-01-2008, 03:36 PM

Have you Shot the SCAR yet chen?, Just something i've always wondered.

Albatross · 10-01-2008, 03:39 PM

what is the cost on the eotech?

SMGLee · 10-01-2008, 04:54 PM

Quote:

Originally Posted by 10th albatross

what is the cost on the eotech?

There are a very variations of the EOLAD2...the top of the line model is in the 1800.00 range, this have all the bells and whistle.

you can buy just the visible laser, or just the IR laser, or both the visible and IR or IR laser with IR illuminator.

The SOCOM version has the IR laser and the foucsable IR illuminator with a 25mW/100mW module.

Quote:

Originally Posted by Createdeemcee

Have you Shot the SCAR yet chen?, Just something i've always wondered.

I did back in the Gen2 days...both a L and a H...

Looking forward to shooting the Mod1 in the near future.

bleaches · 10-01-2008, 05:01 PM

am i the only person who cant see the pics?

Alpha_Mustang · 10-01-2008, 05:04 PM

I can;t see 'em either.

RSone · 10-01-2008, 05:32 PM

try refreshing the page. I'm using Firefox, and i couldn't see them at first either. Refreshed, and now they work just fine.

SMGLee · 10-01-2008, 05:37 PM

my photo server had a hiccup....it should be good to go!!

Kilo 1-1 · 10-01-2008, 05:59 PM

Chen, wouldn't the placement of the LAM unit on the EOLAD2 make it suspectable to being bumped when the weapon's slung (for a right handed shooter)? What are your personal thoughts of it being integrated into the optics? Would you prefer a separate stand alone unit on the top rail instead? This concept reminds me of the MARS sight and that optic they had on the XM8.

Thanks for the pictures.

SMGLee · 10-01-2008, 06:40 PM

The integrated unit was designed at the request of SOCOM, thus one of the EOLAD has the SOCOM designation. EOLAD-2 SOCOM, this is the highest priced unit within the line up.

The integrated unit has some good features, it takes only one battery source, it feeds off the two lithium AA in the 552. it is also more compact than say mounting a PEQ15 or the even bigger PEQ2. especially on a gun like the MK18 or the MP5s an d any gun with short rail real estate. it might be more effective by demo the sight on top of a gun like the HK MP7...

the control knobs are prety difficult to adjust, you would need a coin and the turns has very positive click, it would not be too easy bump out of adjustment.

Bangbangboogie69 · 10-01-2008, 07:14 PM

i got to handle that scar=car L shorty, afterwards hung out with chen and aimpoint sales rep. tried to get them to fight each other, didnt happen...

Kilo 1-1 · 10-01-2008, 08:48 PM

Quote:

Originally Posted by SMGLee

The integrated unit was designed at the request of SOCOM, thus one of the EOLAD has the SOCOM designation. EOLAD-2 SOCOM, this is the highest priced unit within the line up.

The integrated unit has some good features, it takes only one battery source, it feeds off the two lithium AA in the 552. it is also more compact than say mounting a PEQ15 or the even bigger PEQ2. especially on a gun like the MK18 or the MP5s an d any gun with short rail real estate. it might be more effective by demo the sight on top of a gun like the HK MP7...

the control knobs are prety difficult to adjust, you would need a coin and the turns has very positive click, it would not be too easy bump out of adjustment.

Ah ok, thanks for the info. I remember seeing this model in the EOTech brochure, but never got the detailed pictures like the ones you've provided here.

voncoz · 10-01-2008, 10:30 PM

Quote:

Originally Posted by SMGLee

There are a very variations of the EOLAD2...the top of the line model is in the 1800.00 range, this have all the bells and whistle.

you can buy just the visible laser, or just the IR laser, or both the visible and IR or IR laser with IR illuminator.

The SOCOM version has the IR laser and the foucsable IR illuminator with a 25mW/100mW module.

I did back in the Gen2 days...both a L and a H...

Looking forward to shooting the Mod1 in the near future.

This is an old question but do you know when the semi SCAR L will be released for the rest of us?

tactical73 · 10-02-2008, 07:55 AM

Aimpoint M4 quick release mount it is built from the Aimpoint?

Hispeed1 · 10-02-2008, 12:24 PM

SMGLee-just asking, is that an airsoft SCAR-L that's being used for the demo? The pistol grip isn't hollow and the mag plate looks different. Uh-oh, can't see pics again...
